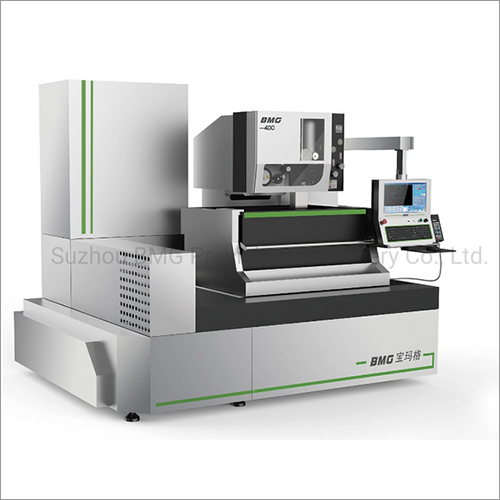

5-Axis Multi-Function CNC Wire Cut Machine

Name: 5-Axis Multi-Function CNC Wire Cut Machine
Brand: SUZHOU BMG PRECISION MACHINERY CO., LTD
Price: 65000 USD
Availability: InStock

Price 65000 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

5-Axis Multi-Function CNC Wire Cut Machine Specification

Product Type
5-Axis Multi-Function CNC Wire Cut Machine

General Use
Industrial

Material
Metal

Type
Wire Cut EDM (Electrical Discharge Machine)

Capacity
Varies by model, typically up to 200 mm thickness

Weight (kg)
Approx. 2000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
Low (specific value varies by model)

Rigidity
High-rigidity structure for precision machining

Voltage
380V / 220V (as per model specification)

Motor
AC Servo Motor

Table Size
400 x 600 mm (example, may vary by model)

Spindle Speed
Not Applicable (Wire EDM)

Axial Choice
X, Y, U, V, Z (5-axis)

Dimension (L*W*H)
2000 x 1500 x 1850 mm (model dependent)

Feature
Multi-function, high precision, high efficiency, automatic operation

Color
White & Black with Green accents

Machine Bed Material
High-grade Cast Iron

Wire Diameter Range
0.15 ~ 0.30 mm

Cutting Speed
Up to 200 mm2/min

Guide Way Type
Linear Guide Way

Input Method
USB, LAN, Offline Programming Supported

Max. Workpiece Size
800 x 630 x 215 mm (varies by model)

Environment
Dustproof and anti-rust body design

Surface Finish
Ra 0.8 m

Repeatability
0.002 mm

Cooling System
Automatic Water Cooling

Safety Features
Automatic Wire Breakage Detection, Emergency Stop

Software Compatibility
Supports multiple CAD/CAM interfaces

Control System
Advanced CNC with touch screen

5-Axis Multi-Function CNC Wire Cut Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Paypal, Telegraphic Transfer (T/T)

Delivery Time
2-3 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

5-Axis Multi-Function CNC Wire Cut Machine About

The Suzhou Bmg Precision Machinery Co., Ltd Company is a well-known exporter, manufacturer and supplier of the superior quality 5-Axis Multi-Function CNC Wire Cut Machine. It is extensively used for processing various applications such as different dies, micro-shaped holes, complex shaped work pieces, samples and forming tools, powder metallurgy mold, corrugated plate forming die, wire drawing die, etc. With the complete support of our team of highly experienced professionals, all the products are made by using the premium quality components and sophisticated technology. Further, we are offering the range of the 5-Axis Multi-Function CNC Wire Cut Machine in various specifications and at affordable prices.

Precision Engineering for Industrial Needs

Engineered for top-tier performance, this CNC wire cut machine ensures accurate cutting and surface finish, even with complex, multi-axis geometries. Built with high rigidity and advanced controls, it enables manufacturers to meet demanding specifications and enhance productivity across a wide range of metalwork projects.

Seamless Operation and User-Friendly Control

Equipped with an intuitive touch screen interface and multiple connectivity options, including USB and LAN, this machine supports both direct and offline programming. Reliable automatic cooling and robust machine safety features contribute to uninterrupted, efficient, and secure operation.

Robust Build and Environmental Protection

Constructed with a high-grade cast iron bed and a dustproof, anti-rust design, the machine is built for longevity and stable operation. The linear guide way mechanism, combined with precise AC servo motors, ensures consistent high-precision cutting in demanding manufacturing environments.

FAQ's of 5-Axis Multi-Function CNC Wire Cut Machine:

Q: How does the 5-axis functionality enhance machining capabilities?

A: The 5-axis system allows for simultaneous movement along X, Y, U, V, and Z axes, enabling the machining of complex shapes and contours with high precision. This results in more flexibility, reduced setup times, and better surface finishes for intricate metal components.

Q: What materials can be processed using this CNC wire cut machine?

A: Primarily designed for industrial metalworking, this CNC wire cut machine efficiently handles various types of metal, including hard alloys and conductive metals, making it suitable for multiple manufacturing sectors.

Q: When is offline programming beneficial for this machine?

A: Offline programming is ideal for preparing and optimizing part programs without occupying the machine, maximizing uptime and improving workflow, especially in production environments where minimal downtime is critical.

Q: Where can this machine be installed, considering environmental concerns?

A: Thanks to its dustproof and anti-rust design, the machine is suitable for installation in diverse industrial settings, including high-demand factories and workshops that prioritize machine durability and low maintenance.

Q: What is the process for integrating CAD/CAM software with this machine?

A: The advanced CNC system supports multiple CAD/CAM interfaces, allowing users to import detailed machining programs directly via USB or LAN. This simplifies integration with existing design and manufacturing processes.

Q: How does the automatic safety system contribute to operator safety?

A: Features like automatic wire breakage detection and an emergency stop ensure quick response to malfunctions, protecting both operators and equipment from damage or unsafe conditions.

Q: What benefits does the machine's high-rigidity structure offer during operation?

A: A high-rigidity cast iron structure ensures tight tolerances, minimal vibration, and stable machining even when processing large or complex parts, resulting in consistent quality and less wear on critical components.
